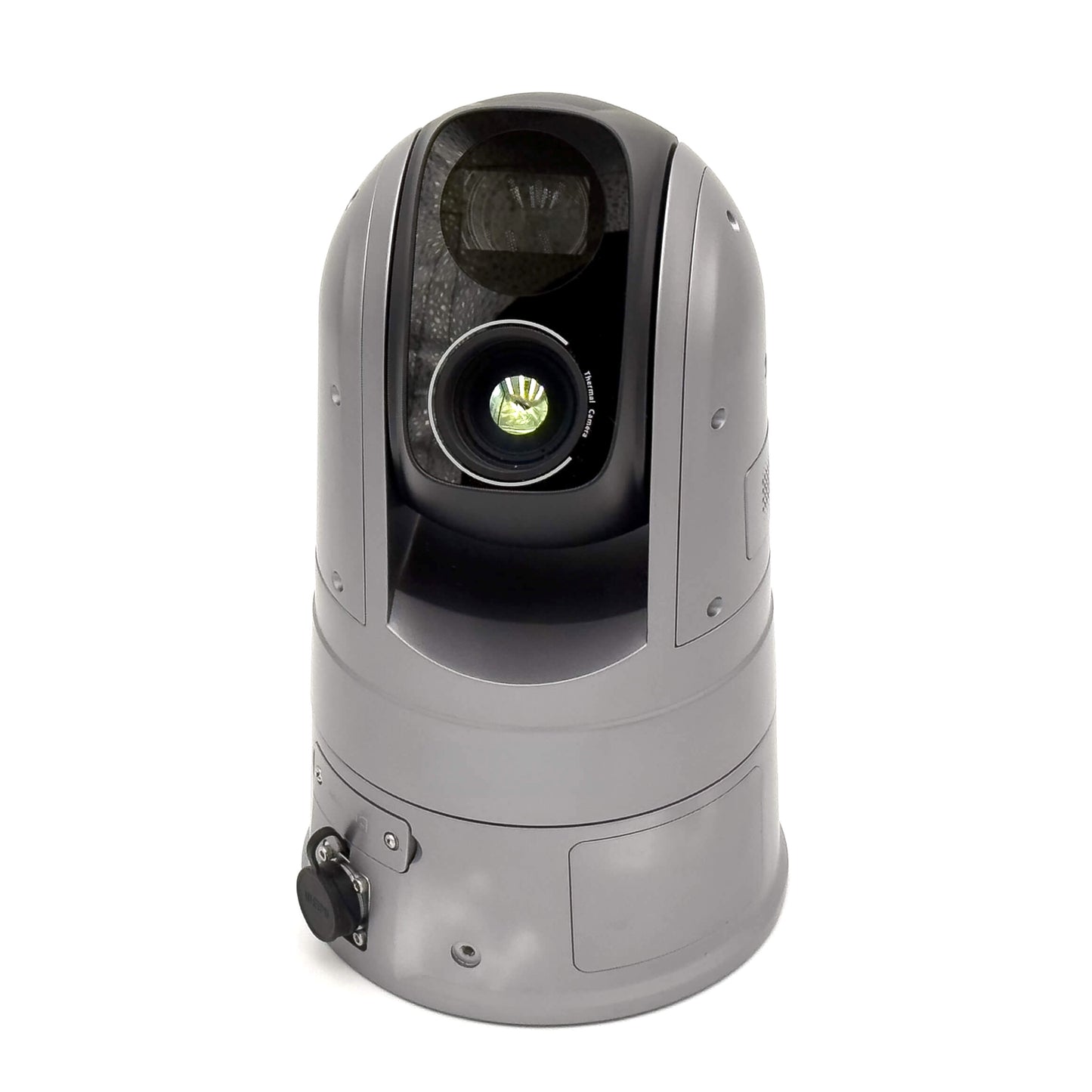

The Hikvision DS-2TD4668-35A4/W is a bi-spectrum portable thermal PTZ (Pan-Tilt-Zoom) camera that integrates thermal and optical imaging technologies. Designed for rapid deployment and versatile applications, this camera delivers high-quality imaging and advanced analytics, making it ideal for various security and monitoring scenarios.
Key Features
-
Dual Imaging Sensors:
- Thermal Sensor: Features a 640 × 512 resolution with a 12 µm pixel pitch, utilizing VOx uncooled focal plane arrays. It achieves a Noise Equivalent Temperature Difference (NETD) of less than 35 mK at 25°C (F1.0), ensuring high sensitivity in thermal detection.
- Optical Sensor: Offers a 4-megapixel resolution with a 1/2.8" progressive scan CMOS sensor and a 25× optical zoom (4.8–120 mm focal length), providing clear and detailed visual information.
-
High-Accuracy Temperature Measurement: Capable of detecting temperature anomalies within a range of -20°C to 150°C (-4°F to 302°F) with an accuracy of ±8°C (±14.4°F), facilitating effective fire prevention and equipment monitoring.
-
Intelligent Video Analytics: Equipped with advanced algorithms for behavior analysis, including line crossing, intrusion detection, region entrance, and region exiting, enhancing proactive security measures.
-
Robust PTZ Functionality: Features precise pan, tilt, and zoom capabilities, allowing for flexible and comprehensive area coverage. The camera supports 360° continuous pan rotation and a tilt range from -20° to +90° with auto-flip.
-
Integrated Wi-Fi and 4G Connectivity: Supports 2.4 GHz Wi-Fi and LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, allowing for flexible and remote monitoring setups.
-
Long Battery Life: Equipped with a lithium battery supporting over 10 hours of continuous operation when recording, ensuring extended field usage.
-
Magnetic Mounting: Equipped with high-suction magnets at the base, allowing for easy and quick installation on various surfaces.
Technical Specifications
-
Thermal Module:
- Resolution: 640 × 512
- Pixel Pitch: 12 µm
- Focal Length: 35 mm
- Field of View (FOV): 12.4° × 10.0° (H × V)
- NETD: < 35 mK (@25 °C, F1.0)
-
Optical Module:
- Resolution: 4 MP (2560 × 1440)
- Focal Length: 4.8–120 mm, 25× optical zoom
- Field of View (FOV): 55° × 33° to 2.4° × 1.4° (H × V)
- Min. Illumination: Color: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @ (F1.5, AGC ON)
-
PTZ Parameters:
- Pan Range: 360° continuous rotation
- Tilt Range: -20° to +90° (auto flip)
- Pan Speed: Configurable, up to 200°/s
- Tilt Speed: Configurable, up to 100°/s
-
Connectivity:
- Wi-Fi: 2.4 GHz (IEEE802.11b/g/n)
- 4G LTE: Supports LTE FDD, LTE TDD, and WCDMA bands
- SIM Card: Micro SIM
-
Battery:
- Type: Lithium battery
- Capacity: 10.5 Ah
- Voltage: 10.9 V
-
Physical Characteristics:
- Dimensions: Ø176 mm × 299 mm (height)
- Weight: Approximately 4.5 kg (10.8 lb)
- Protection Level: IP67
Ideal Applications
This bi-spectrum camera is suitable for various scenarios requiring enhanced surveillance, including:
-
Perimeter Security: Monitoring restricted areas and detecting unauthorized access.
-
Critical Infrastructure Protection: Safeguarding vital facilities such as power plants and water treatment plants.
-
Fire Detection: Early identification of fire hazards in forests, warehouses, and industrial sites.
Flexible Rental Options
To accommodate diverse operational needs, we offer flexible rental options for the Hikvision DS-2TD4668-35A4/W Bi-Spectrum Portable Thermal PTZ Camera:
-
Daily Rental: No long-term commitment required.
-
Ready for Immediate Use: Pre-configured for quick deployment.
-
Adaptable for Various Operations: Ideal for temporary projects, events, or emergency situations where enhanced obstacle detection is crucial.
